Sequential actuation

Sequential controllers (SVG)

Advanced controllers for sequential hydraulic, pneumatic or electric valve-pin actuation during the injection molding process.

Mold-Masters

Auxiliary sequential controller for pneumatic or hydraulic actuation of valve-gated hot runner systems.

Key insights

Available with 8, 12 or 24 sequential valve gates.

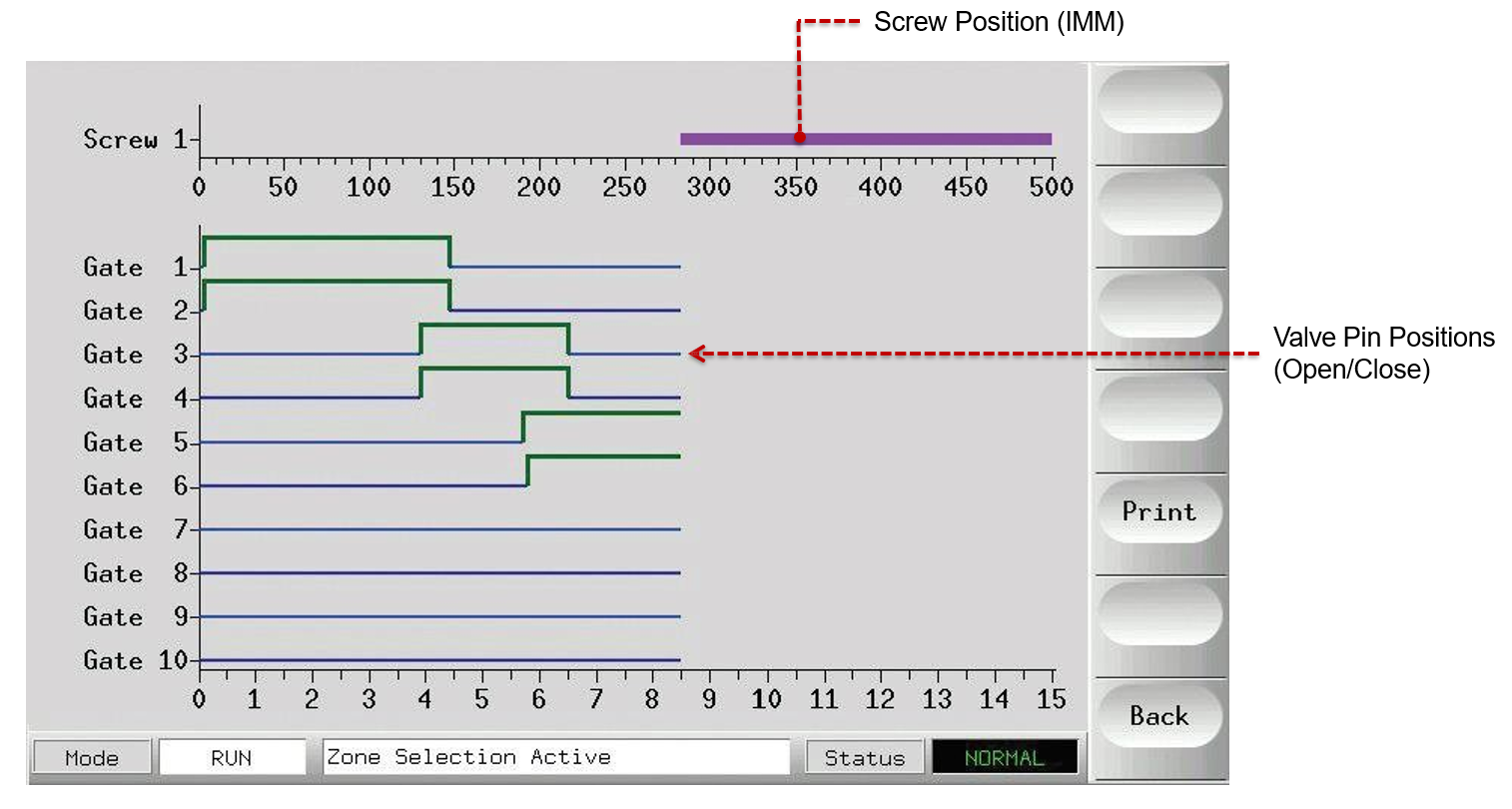

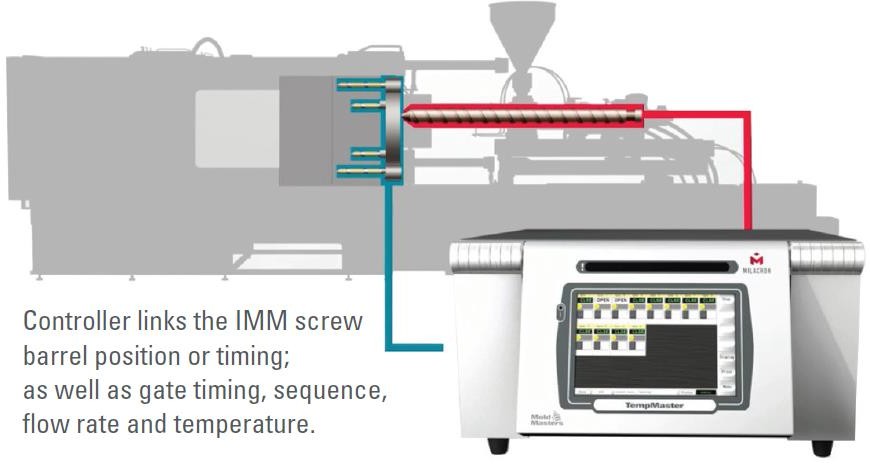

Connects to the hot runner system and injection molding machine to monitor valve-pin and screw positions in real time.

Mold-Masters

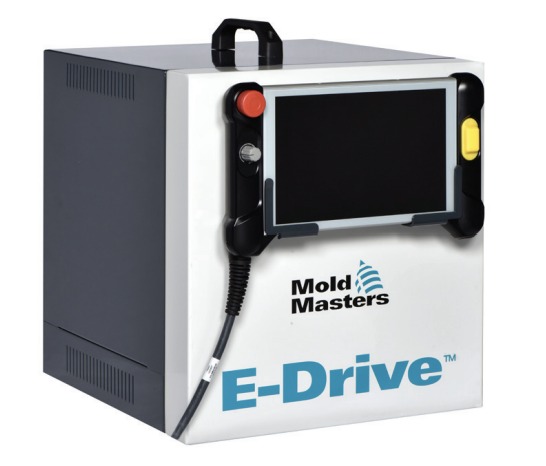

A servo-driven system offering precise individual control of each valve pin's opening and closing profile.

Key insights

Adjust valve-pin positions in increments of 0.01 mm.

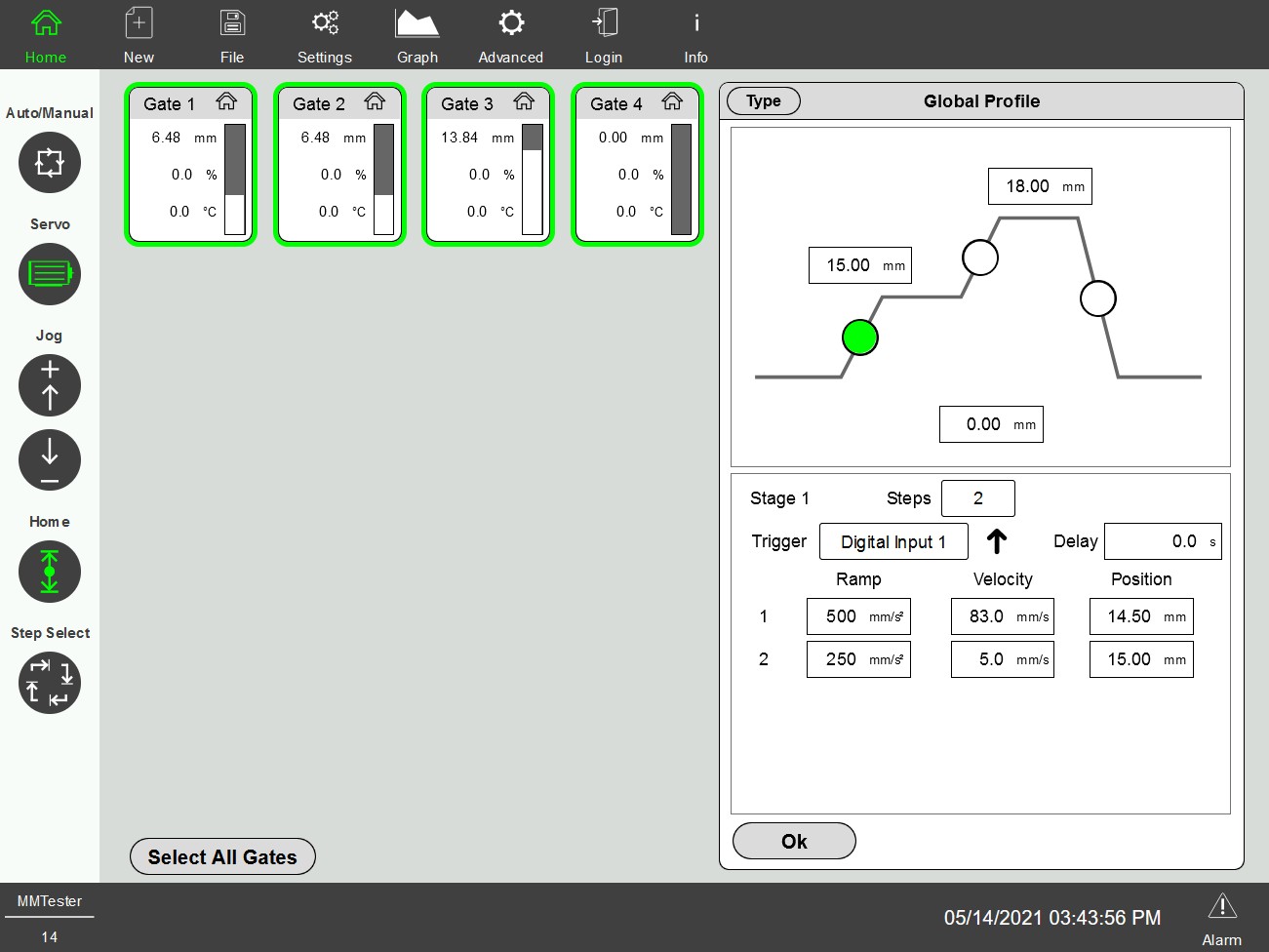

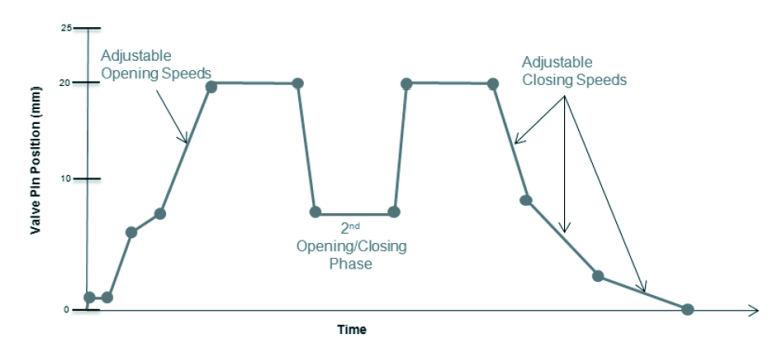

Individually adjust pin position, acceleration, velocity, stroke, timing and sequence.

Mold-Masters

Simultaneous valve pin actuation control via synchro plate, for servo-electric valve gate hot runner systems.

Key insights

Mold-Masters

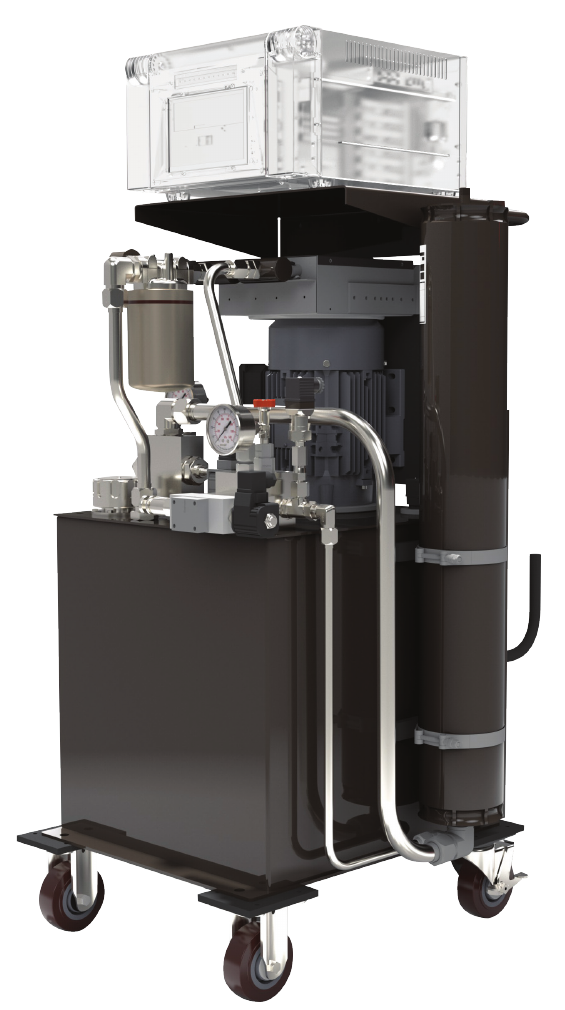

An integrated hydraulic or pneumatic booster and SVG controller for machines without the required actuation function or capacity.

Key insights
